Increase building health, comfort and efficiency, while reducing HVAC energy, with a complete family of Ultra High Efficiency fully featured ERVs and HRVs.

In addition, Ventacity’s Smart Building Platform provides the ability to remotely monitor and analyze your complete HVAC solutions for better performance, lower maintenance costs and maximized operation efficiency.

— Choose a Series

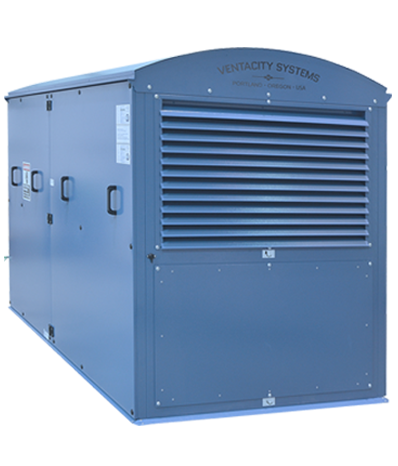

VS 3000 RT

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
208/230 or 480
750 to 3,000 cfm
57.5”(w) x 68.8”(h) x 90.2”(I), 1,654 lbs
Energy Recovery Ventilator
208/230 or 480
750 to 3,000 cfm
57.5”(w) x 68.8”(h) x 90.2”(I), 1,720 lbs

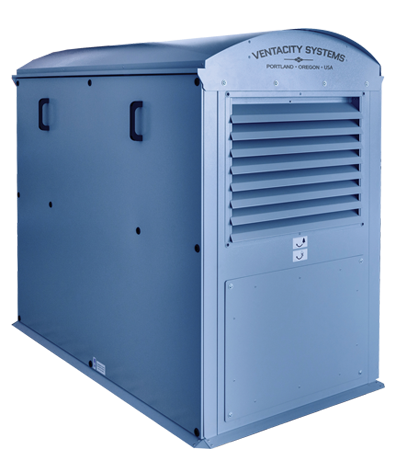

VS 1000 RT

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
208 or 240
75 to 1,000 cfm
34.9”(w) x 52.4”(h) x 61.3”(I), 618 lbs
Energy Recovery Ventilator
208 or 240
75 to 1,000 cfm
34.9”(w) x 52.4”(h) x 61.3”(I), 662 lbs

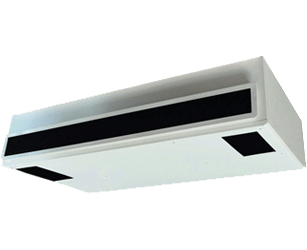

VS500 SQ

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
208 – 240 VAC
117 to 500 cfm
44.0”(w) x 84.3”(h) x 17.9”(I), 280 lbs
Energy Recovery Ventilator
208 – 240 VAC
117 to 500 cfm
44.0”(w) x 17.9”(h) x 84.3”(I), 288 lbs

VS1200CM

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
240 VAC
300 to 1200 cfm
78.7”(w) x 18.5”(h) x 67.3”(I), 529 lbs
Energy Recovery Ventilator
240 VAC
300 to 1200 cfm
78.7”(w) x 18.5”(h) x 67.3”(I), 547 lbs

VS900CM

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
240 VAC
200 to 900 cfm
66.93”(w) x 15.35”(h) x 54.53”(I), 364 lbs
Energy Recovery Ventilator
240 VAC
200 to 900 cfm
66.93”(w) x 15.35”(h) x 54.53”(I), 364 lbs

VS400CM

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
240 VAC
120 to 400 cfm
55.12”(w) x 12.2”(h) x 42.52”(I), 198 lbs
Energy Recovery Ventilator
240 VAC
120 to 400 cfm
44.0”(w) x 12.2”(h) x 42.52”(I), 203 lbs

VS250CM

Ventilation
Voltage
Flow Range
Dimensions
Downloads
Heat Recovery Ventilator
240 VAC
60 to 270 cfm
46.9”(w) x 12.2”(h) x 30.7”(I), 154 lbs
Energy Recovery Ventilator
240 VAC
60 to 270 cfm
46.9”(w) x 17.9”(h) x 30.7”(I), 159 lbs
Ventacity | Solutions

Ventilation Solution Brief

Ultra-Efficient and Smart Family of Ventilation Solutions Supplying Superior Air Quality
